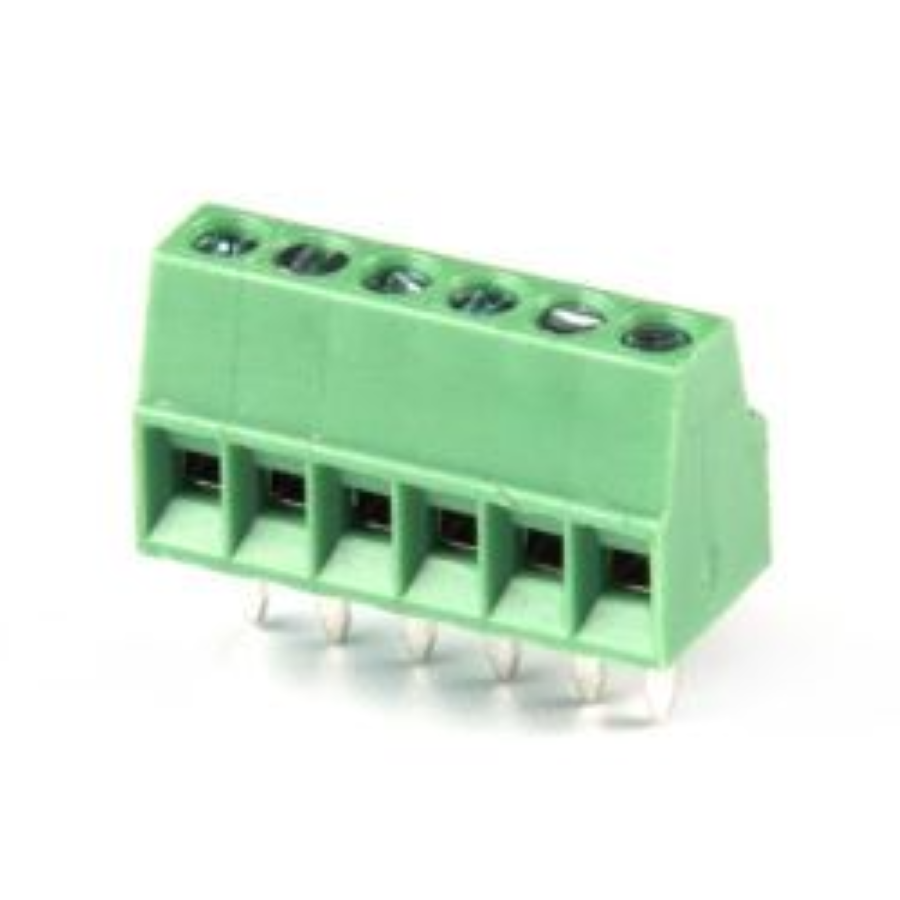

OSTVN02A150
Manufacturer:
On Shore Technology
Mfr.Part #:
OSTVN02A150
Datasheet:
Description:
Terminal Blocks Through Hole 2 2.54 mm 6 A 125 V 30 AWG to 20 AWG
| Parameter | Value |
|---|---|
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 2 |
| Packaging | Bulk |
| Voltage Rating | 125 V |
| RoHS | Compliant |
| Voltage | 125 V |
| Contact Plating | Brass |
| Pitch | 2.54 mm |
| Current | 6 A |
| Current Rating | 6 A |
| Color | Green |
| Number of Positions | 2 |
| Housing Material | Thermoplastic |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 20 AWG |
| Plating | Brass, Steel |
| Connection Method | Screw |
| Wire Gauge Range | 30 AWG to 20 AWG |
Stock: 5309
Distributors
pcbx
pcbxUnit Price$0.54398
Ext.Price$0.54398
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.54398 | $0.54398 |
| 10 | $0.40046 | $4.00460 |
| 25 | $0.34890 | $8.72250 |
| 50 | $0.31460 | $15.73000 |
| 100 | $0.28463 | $28.46300 |
| 300 | $0.25731 | $77.19300 |
| 500 | $0.23262 | $116.31000 |
| 1000 | $0.21680 | $216.80000 |
| 3000 | $0.20377 | $611.31000 |
| 5000 | $0.19153 | $957.65000 |
